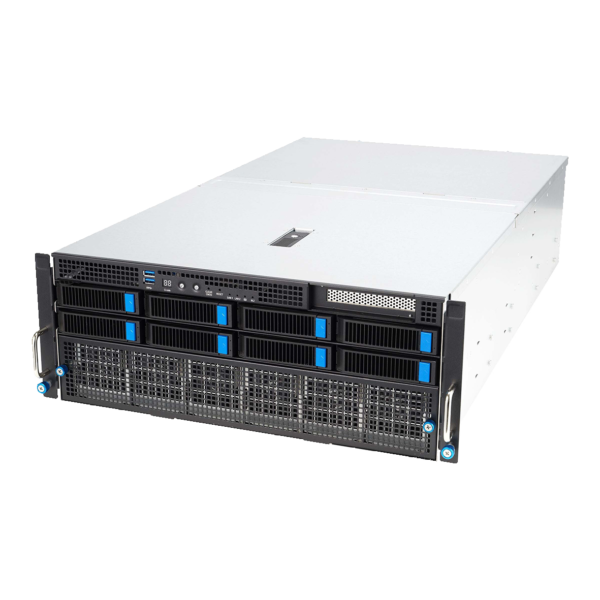

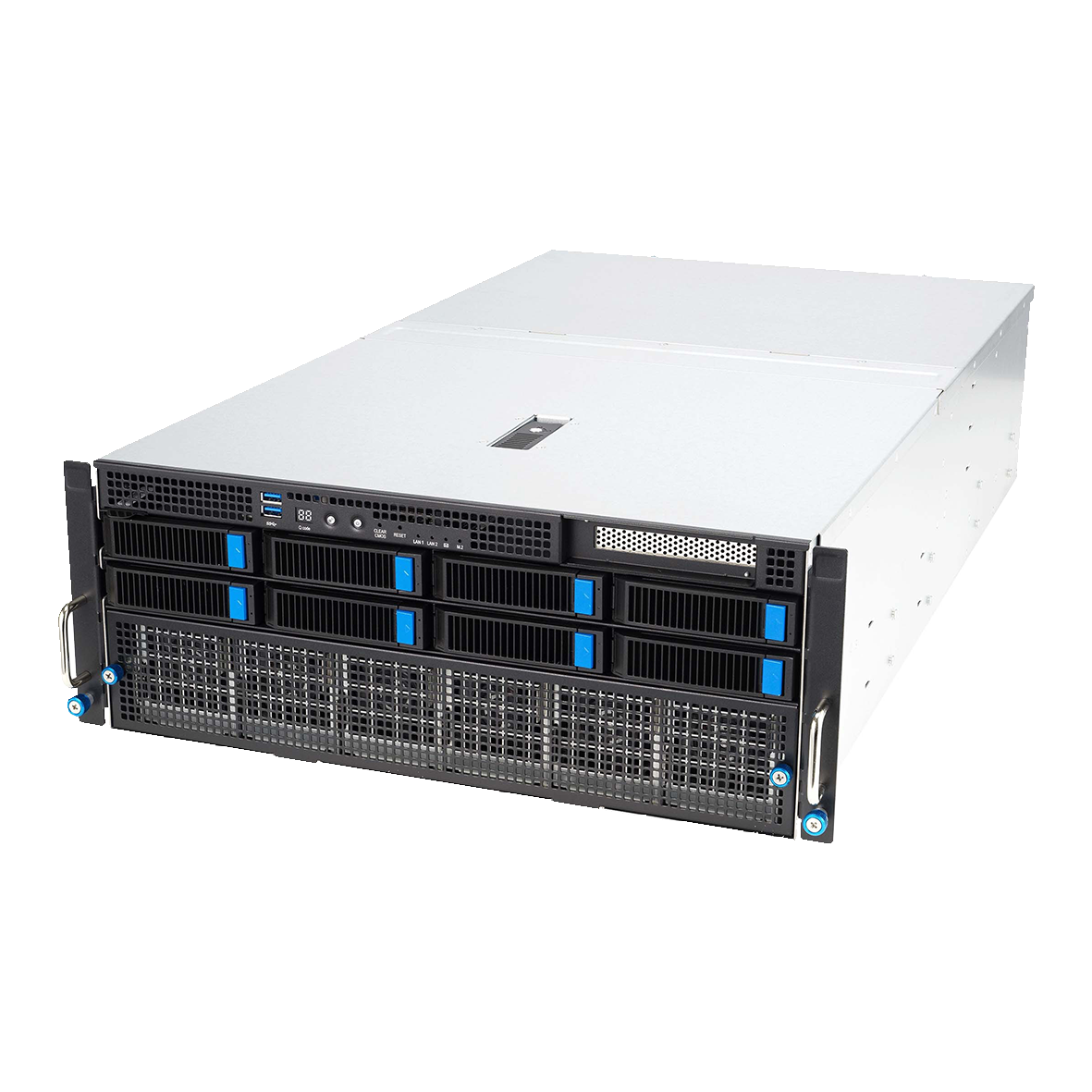

Generally
|
| Manufacturer |
Asus |
| Manufacturer item number |
ESC8000A-E12 |
| Manufacturer Warranty (months) |
36 months manufacturer guarantee |
| Packaging |
retail |
Housing key data
|
| primary color |
black |
| case form factor |
4U rack mount |
| go Motherboard form factors |
proprietary |
| IP certification |
no IP certification |
| dust filter |
no dust filter |
| accessories incl. |
Mounting accessories for drives, telescopic rails, power cords |
Housing usability
|
| switches/buttons |
Power switch, reset button |
| housing LEDs |
Power LED, Hard Drive Activity LED, Network Activity LED(s), Universal Information LED, Locate LED |
| Front flap |
no front flap |
Housing I/O expansion
|
| expansion card slots |
10x full-height slots, 1x low-profile slot |
| SAS expanders |
no SAS expander |
Housing slots & assembly
|
| Inserts external |
8x 3.5″ external hot-swap |
| slots internal |
no internal slots |
| HDD decoupling |
no HDD decoupling |

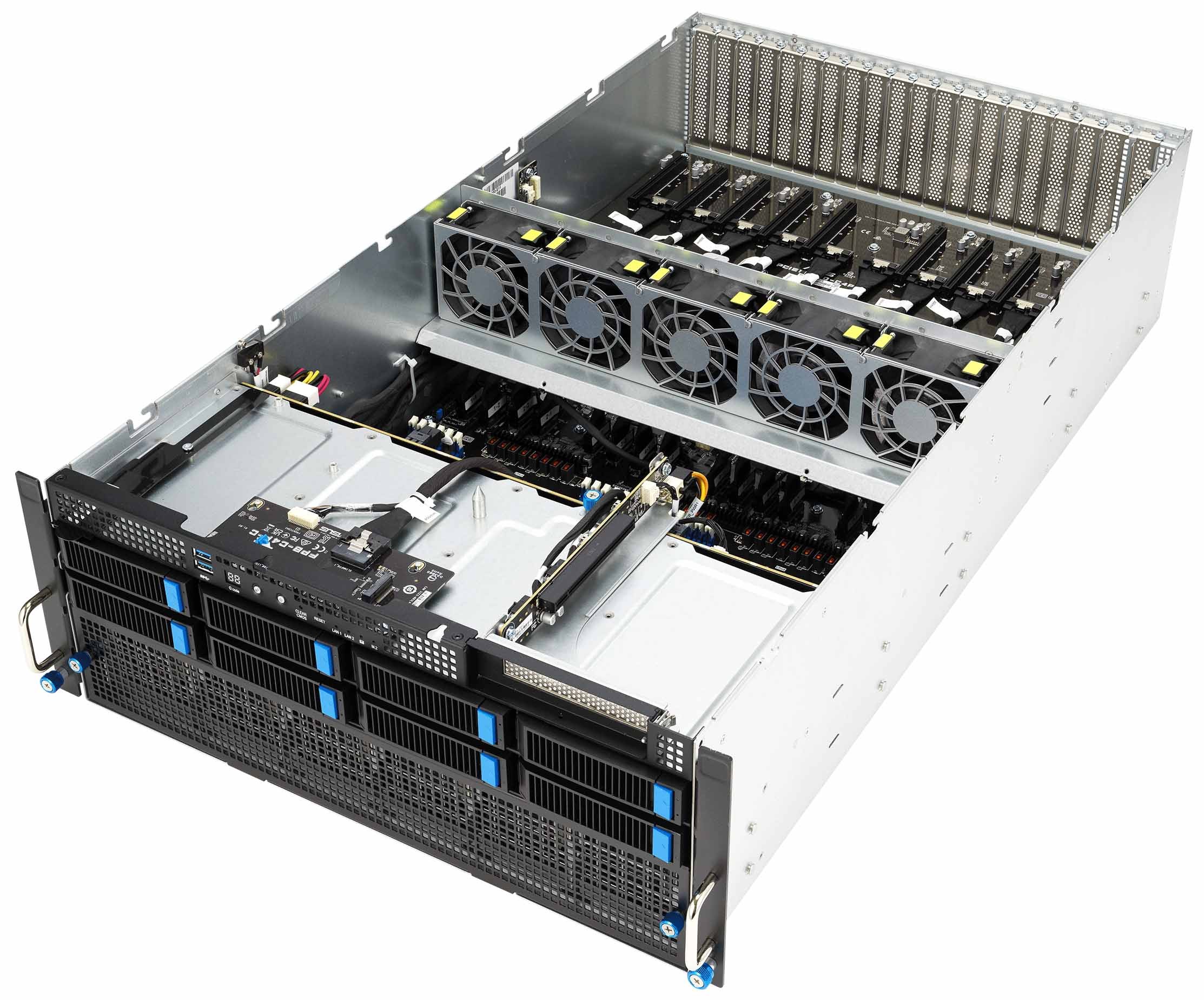

housing cooling
|
| go fan installed |
not specified |
| go Fan optional |
– |
| fan control |
Fan control via BIOS/Software |
external connections housing
|
| External Connections |
2x USB 3.2 – 5 Gb/s Type A |
Housing power supply
|
| built-in power supply |
redundant power supply |
Power supply housing or per node
|
| PSU form factor |
proprietary |
| PSU type |
servers and industry |
| Power supply cable management |
not specified |
Power supply additional information
|
| Power (180-240V) |
3000 watts |
| Power Factor Correction (PFC) |
ActivePFC |
| power supply fan |
not specified |
| Efficiency at full load in % |
92 |
| 80 PLUS certification |
80 PLUS titanium |

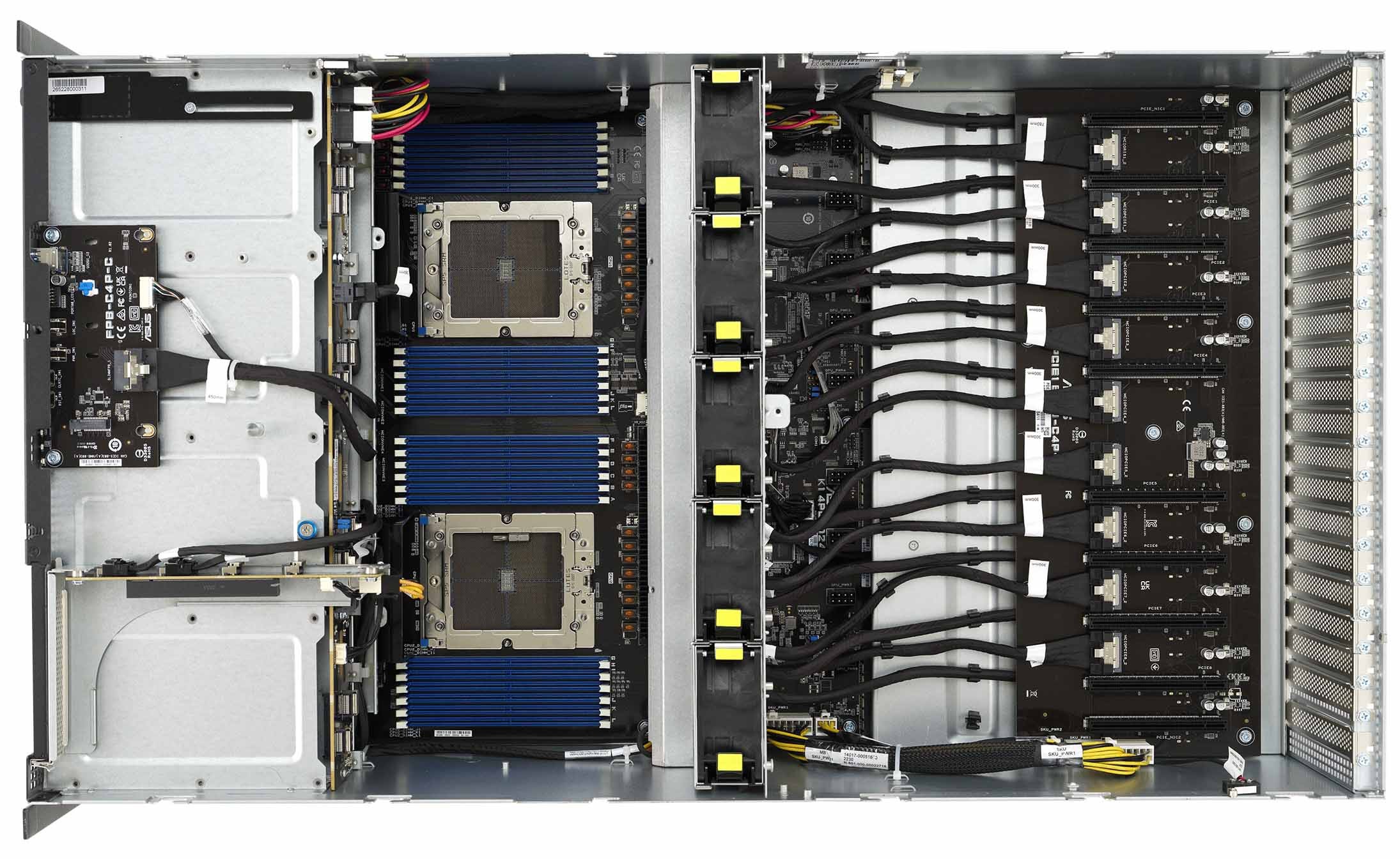

motherboard properties
|
| Mainboard is optimized for |
server |
| Motherboard form factor |
proprietary |
| Motherboard chipset |
system-on-chip |
| network controller |
Intel X710-AT2 (10Gb) |
| graphics support |
onboard graphics |
| sound |
no onboard sound |
processor
|
| CPU support |
AMD EPYC 9004 Series |
| CPU socket type |
LGA 6096 (SP5) |
| CPU socket number |
2 |
| CPU socket ILM |
default |
random access memory
|
| memory type |
DDR5 |
| Memory max. MHz |
4800 |
| Memory ECC support |
ECC registered, ECC LR DIMM |
| memory slots |
24 |
| max. RAM capacity (GB) |
6144 |
expansion card slots
|
| PCI Express slots |
9x PCIe 5.0 (x16), 2x PCIe 5.0 (x8) |
| Mini PCI Express slots |
no |
| PCI slots |
no |
| M.2 slot |
1x M.2 Key M Port |
| M.2 format support |
22×42, 22×60, 22×80, 22×110 |
Storage
|
| controllers |
system-on-chip |
| RAID support |
no |
| NVMe ports |
no |
| SAS ports |
no |
| SATA ports |
no |
| Disk on Module (DOM) |
no |
Other connections Internal
|
| Internal USB header |
no |
| USB type A internal |
no |
| Internal serial port header |
no |
| Internal TPM headers |
1x TPM 2.0 – 20-pin header |
| Internal audio connections |
no |
| fan connections |
5x 4-pin |
External connections
|
| PS/2 port(s) |
no |
| USB port(s) |
no |
| Thunderbolt port(s) |
no |
| eSATA |
no |
| Serial (COM port) |
no |
| IPMI |
1x RJ45 IPMI dedicated |
| Network port(s) |
2x RJ45 – 10 Gbit/s |
| Graphics port(s) |
1x VGA |
| audio port(s) |
no |
| Integrated WiFi |
no |
| Integrated Bluetooth |
no |
motherboard bios
|
| BIOS type |
ASUS CrashFree BIOS 3 |
| BIOS features |
– |
management
|
| software |
– |
| power management |
– |
Mainboard Operating Environment
|
| Temperature range from |
10°C |
| Temperature range up to |
35°C |
Dimensions
|
| Broad |
439mm |
| Height |
175.6mm |
| depth |
780mm |
Weight
|
| weight (kg) |
49 |
