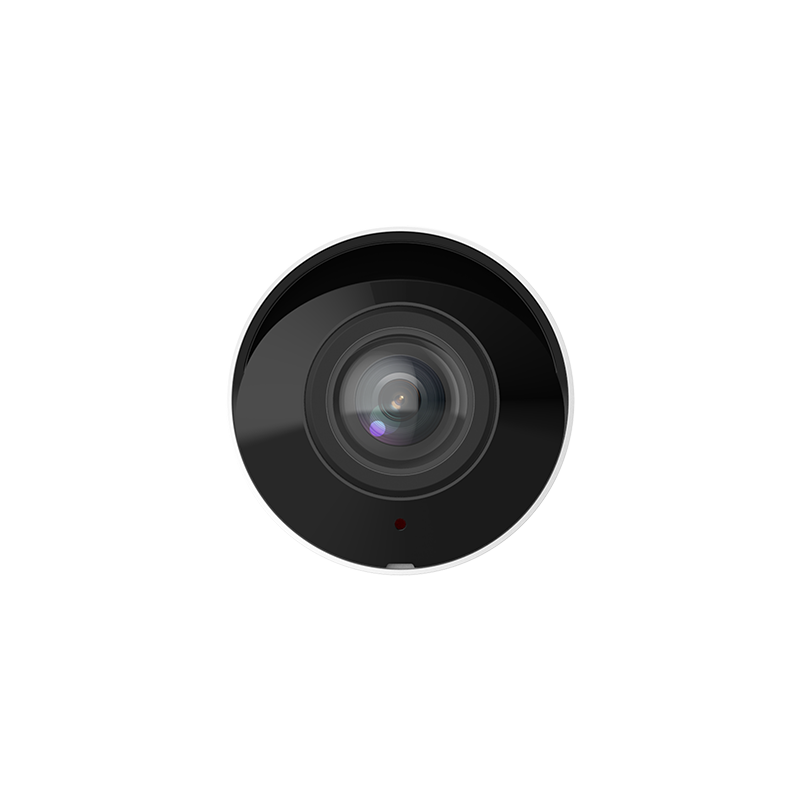

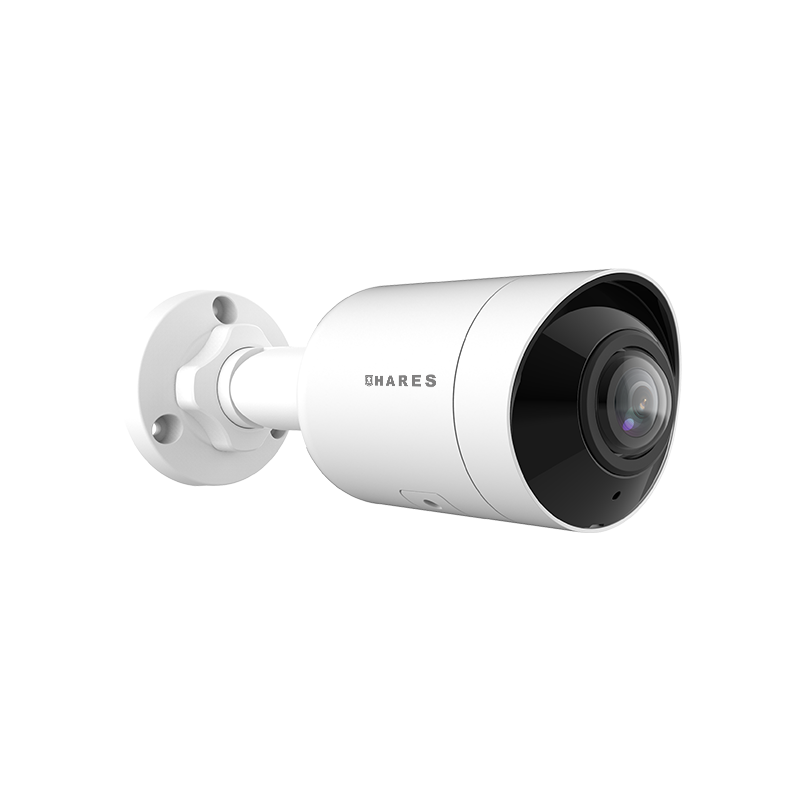

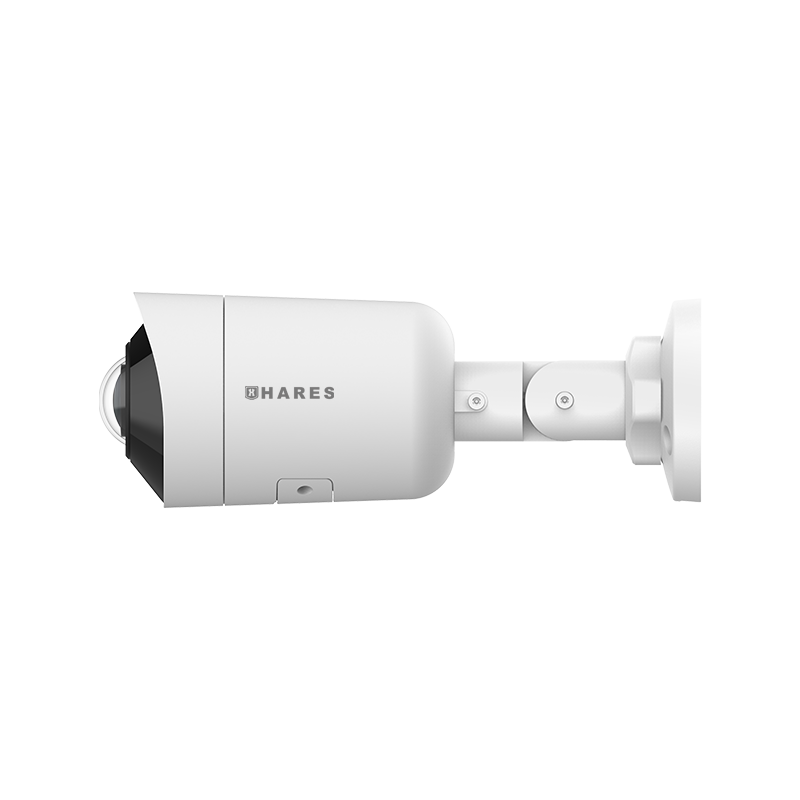

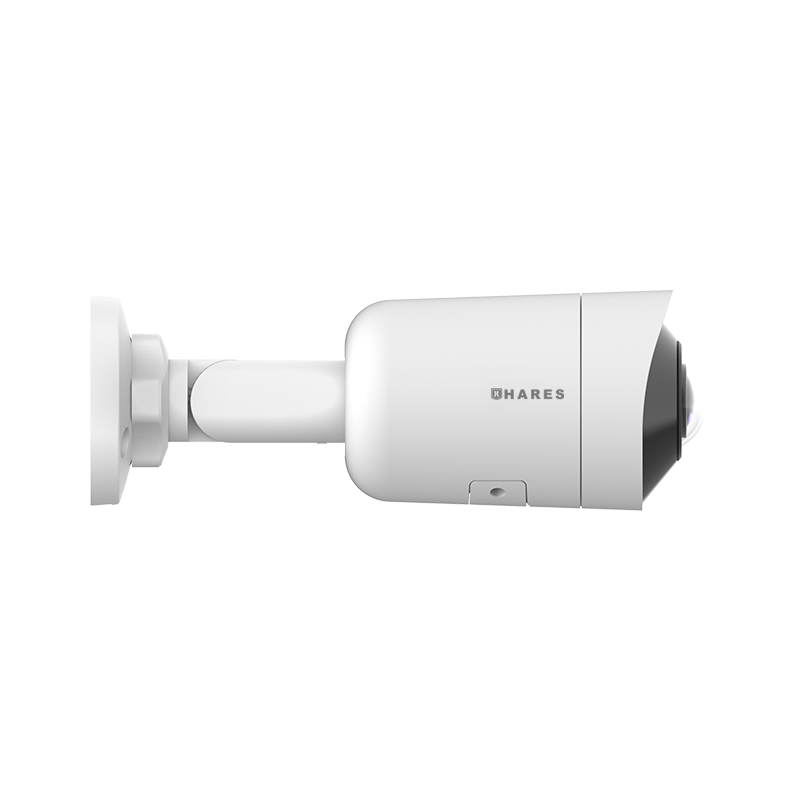

Camera model HS-IPC-E1F5W-I20-180

High quality image with 5MP, 1/2.7″CMOS sensor
5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
Wide Angle technology realize the horizontal viewing angle of 180°
The dewarp level can be configured in the range of 1-9
Ultra 265,H.264,H.265, MJPEG
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
120dB true WDR technology enables clear image in strong light scene
Built-in Mic
Smart IR, up to 20m (66ft) IR distance
DC12V or PoE(IEEE 802.3af) power supply
3-Axis

Add to wishlist

Sensor	1/2.7", 5.0 megapixel, CMOS, progressive scan
Lens	1.68mm@F2.0
Angle of View (H)	180°
Angle of View (V)	100°
Angle of View (O)	180°
DORI Distance Lens (mm)	1.68mm
DORI Distance Detect	37.8(124.0ft)m
DORI Distance Observe (m)	15.1(49.6ft)m
DORI Distance Recognize (m)	7.6(24.8ft)m
DORI Distance Identify (m)	3.8(12.4ft)m
IR Range	Up to 20m (66ft) IR range
Wavelength	850nm
Video Compression	H.264, H.265, MJPEG, Ultra 265
Frame Rate	Main Stream: 5MP (28801620), Max 30fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 1280720 Max 30fps, Sub Stream: 1080P (19201080), Max 30fps;720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;, Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps;
OSD	Up to 8 OSDs
White Balance	Auto, Auto2, Fine Tune, Locked, Outdoor, Sodium Lamp
Network Storage	ANR, NAS(NFS)
Edge Storage	Micro SD, up to 256GB
Digital noise reduction	2D/3D DNR
