RB750P-PBr2

650MHz CPU, 64MB RAM, 5xEthernet with PoE output for four ports, RouterOS L4, outdoor case, PSU

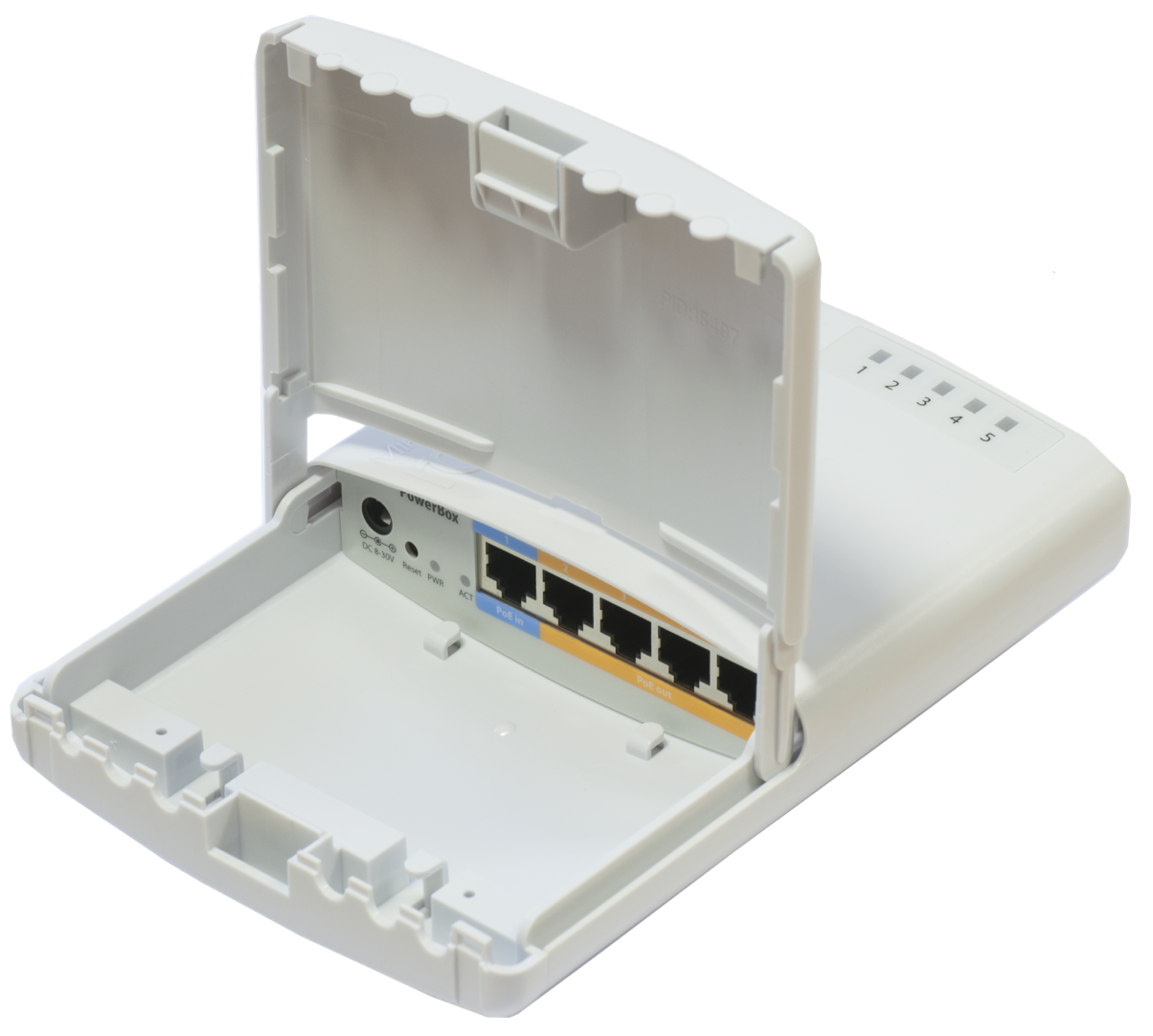

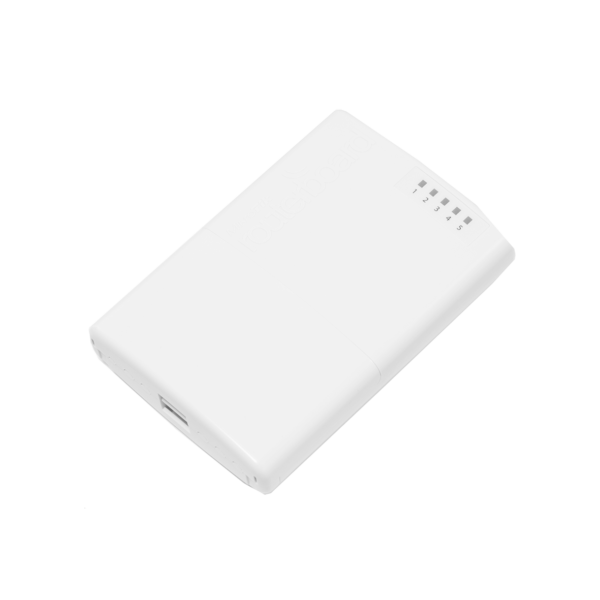

The PowerBox is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.

Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.

The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adapters and cables to worry about!

Add to wishlist
Share
Category

    Specifications

    Details
    Product code RB750P-PBr2
    Architecture MIPSBE
    CPU QCA9533
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model QCA9533
    Dimensions 125x178x48mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100’000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $69.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 8-30 V
    Max power consumption 50 W
    Max power consumption without attachments 2 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-30 V

    PoE-out

    Details
    PoE-out ports Ether2-Ether5
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 1 A
    Max total out (A) 2 A

    Ethernet

    Details
    10/100 Ethernet ports 5

    Other

    Details
    Current Monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20
