RBcAP2nD

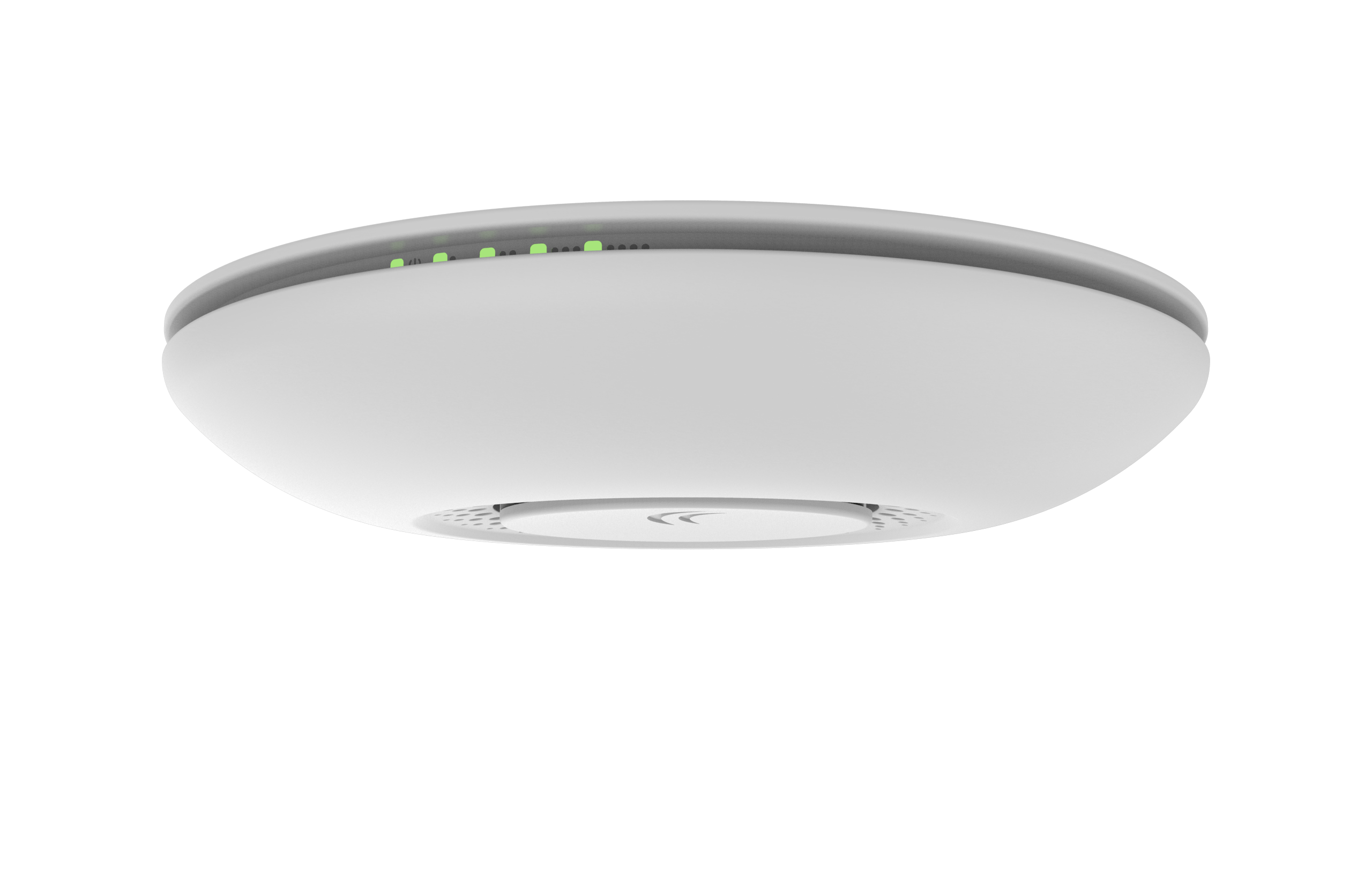

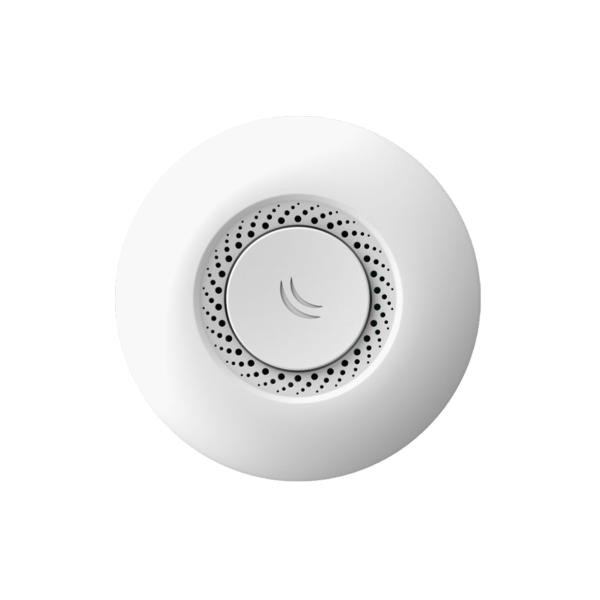

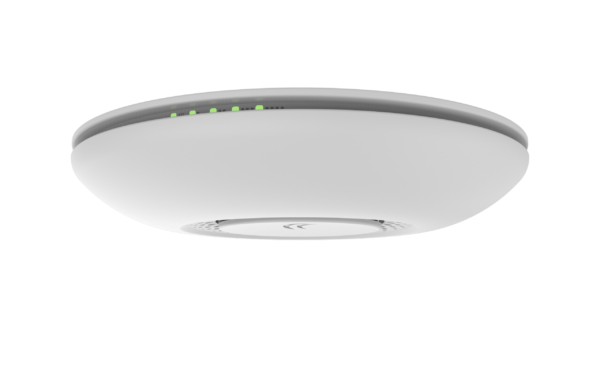

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

Add to wishlist
Share
Category

    Specifications

    Details
    Product code RBcAP2nD
    Architecture MIPSBE
    CPU QCA9533
    CPU core count 1
    CPU nominal frequency 650 MHz
    Dimensions 185mm diameter, 31mm height
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100’000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $49.95

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2
    Wireless 2.4 GHz chip model QCA9533
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 4 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 11-57 V

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP20

    Other

    Details
    Mode button Yes

    Wireless specifications

    2.4 GHz Transmit (dBm) Receive Sensitivity
    1MBit/s 22 -96
    11MBit/s 22 -89
    6MBit/s 20 -93
    54MBit/s 18 -74
    MCS0 20 -93
    MCS7 16 -71
