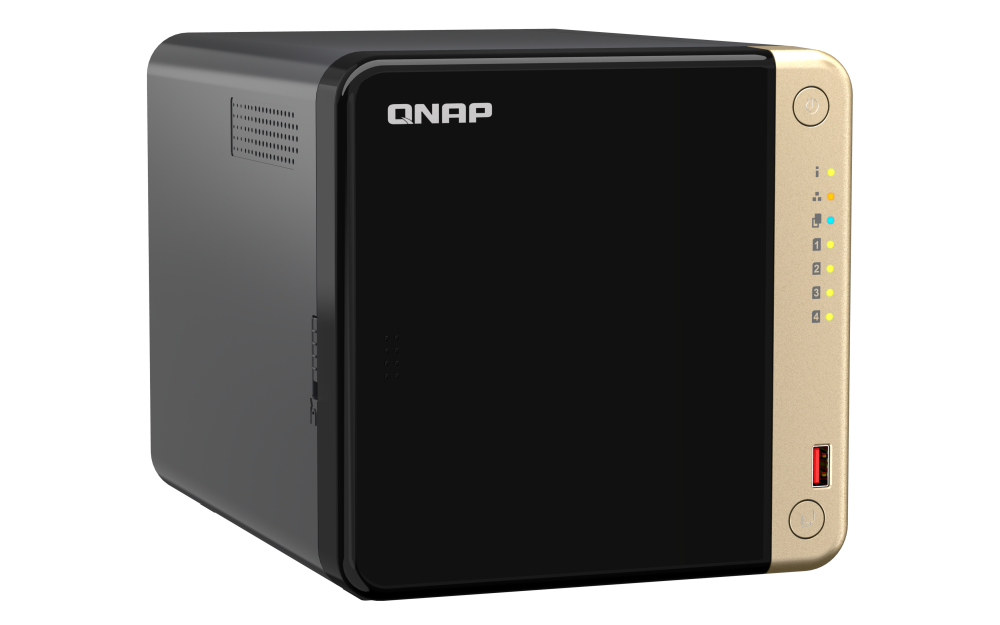

TS-464-4G

TS-464 is a compact 4-bay NAS with superior performance. Supporting up to 66 TB storage and 4 TB M.2 SSD caching at an affordable price, the TS-464 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

  • 2.5GbE is a must!
  • Quad-core for multitasking
  • Smooth video conversion
  • Upgrade to dual-port 10GbE
  • Faster USB transfer
  • More M.2 NVMe SSDs
Add to wishlist
Share
Category
    CPU Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
    CPU Architecture 64-bit x86
    Graphic Processors Intel® UHD Graphics
    Floating Point Unit Yes
    Encryption Engine  (AES-NI)
    Hardware-accelerated Transcoding Yes
    System Memory 4 GB SODIMM DDR4 (1 x 4 GB)
    Maximum Memory 16 GB (2 x 8GB)
    Memory Slot 2 x SODIMM DDR4

    For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
    Flash Memory 4GB (Dual boot OS protection)
    Drive Bay 4 x 3.5-inch SATA 6Gb/s

    The system is shipped without HDD.
    For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
    Drive Compatibility 3.5-inch SATA hard disk drives
    2.5-inch SATA solid state drives
    Hot-swappable Yes
    M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
    SSD Cache Acceleration Support Yes
    2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
    5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card
    10 Gigabit Ethernet Port Optional via PCIe expansion card
    Wake on LAN (WOL) Yes
    Jumbo Frame Yes
    PCIe Slot 1
    Slot 1: PCIe Gen 3 x2

    Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
    USB 2.0 port 2
    USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
    IR Sensor  (Optional QNAP RM-IR004 remote control)
    HDMI Output 1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)
    Form Factor Tower
    LED Indicators Power/Status, LAN, USB, HDD1-4
    Buttons Power, USB copy, Reset
    Dimensions (HxWxD) 168 × 170 × 226 mm
    Weight (Net) 2.26 kg
    Weight (Gross) 3.6 kg
    Operating Temperature 0 – 40 °C (32°F – 104°F)
    Storage Temperature -20 – 70°C (-4°F – 158°F)
    Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
    Power Supply Unit 90W adapter, 100-240V
    Power Consumption: HDD Sleep Mode 21.618 W
    Power Consumption: Operating Mode, Typical 40.536 W

    Tested with drives fully populated.
    Fan 1 x 120mm, 12VDC
    System Warning Buzzer
    Kensington Security Slot Yes
    Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1500

Related Products

QNAP1

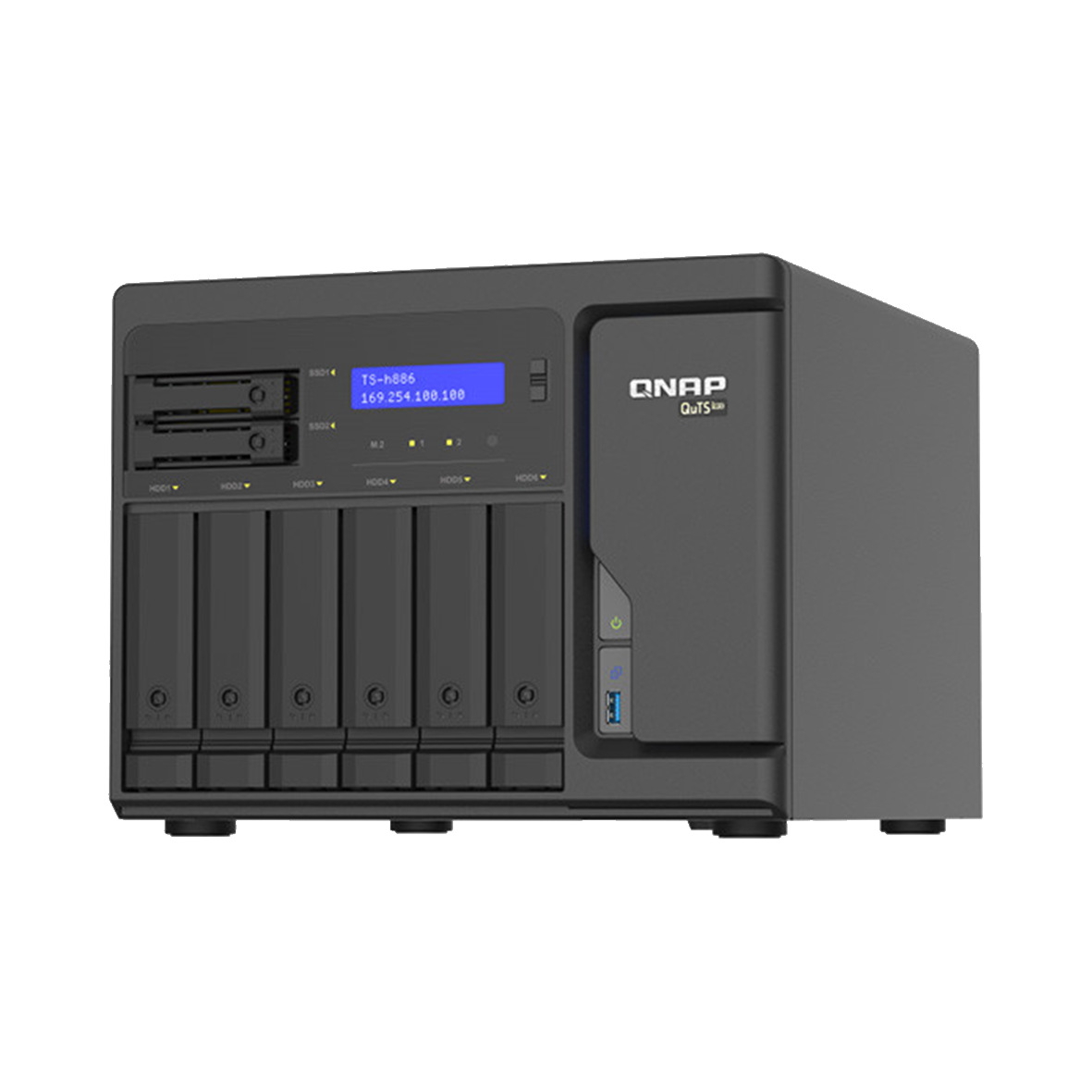

TS-h886-D1622-16G
QNAP5

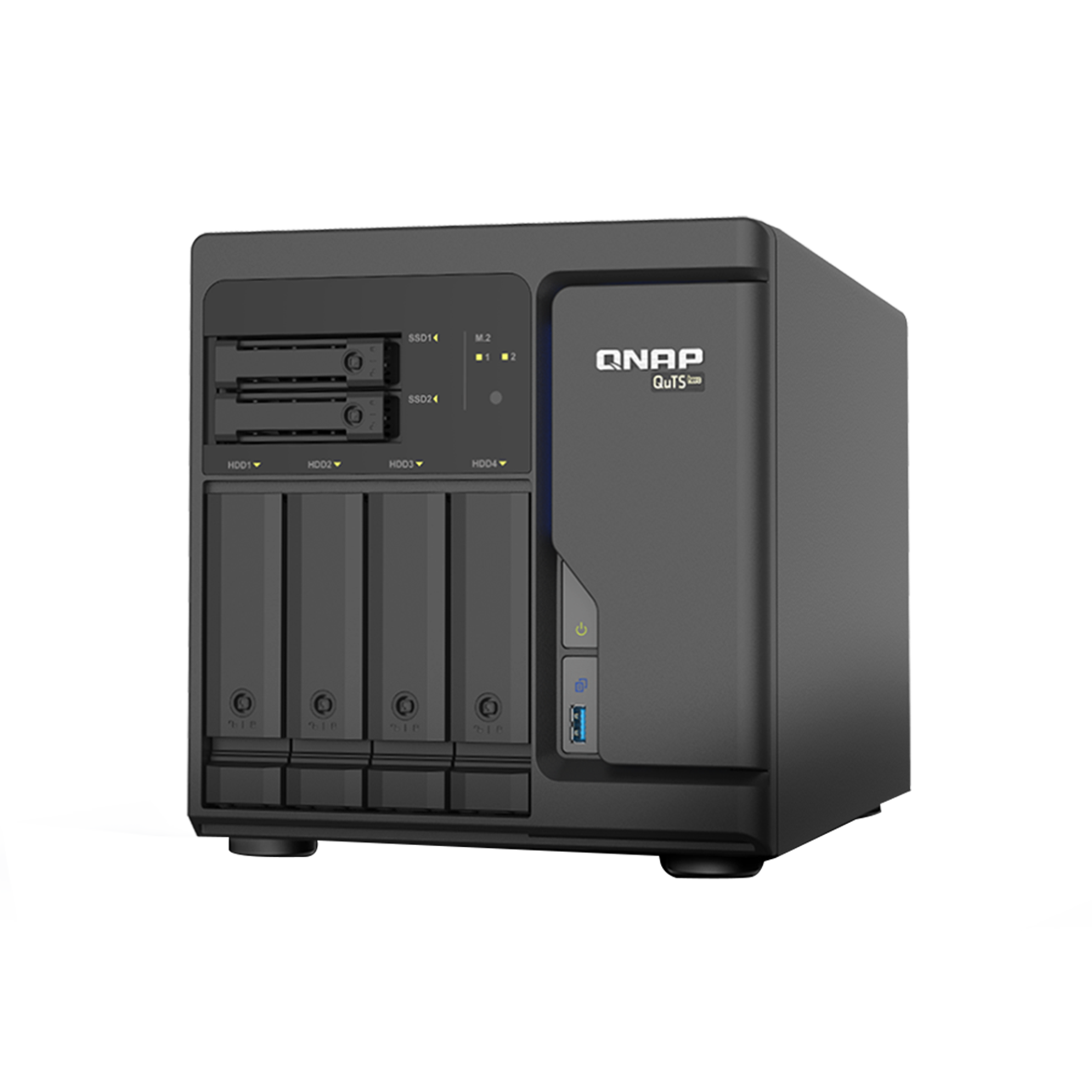

TS-h686-D1602-8G
QNAP3

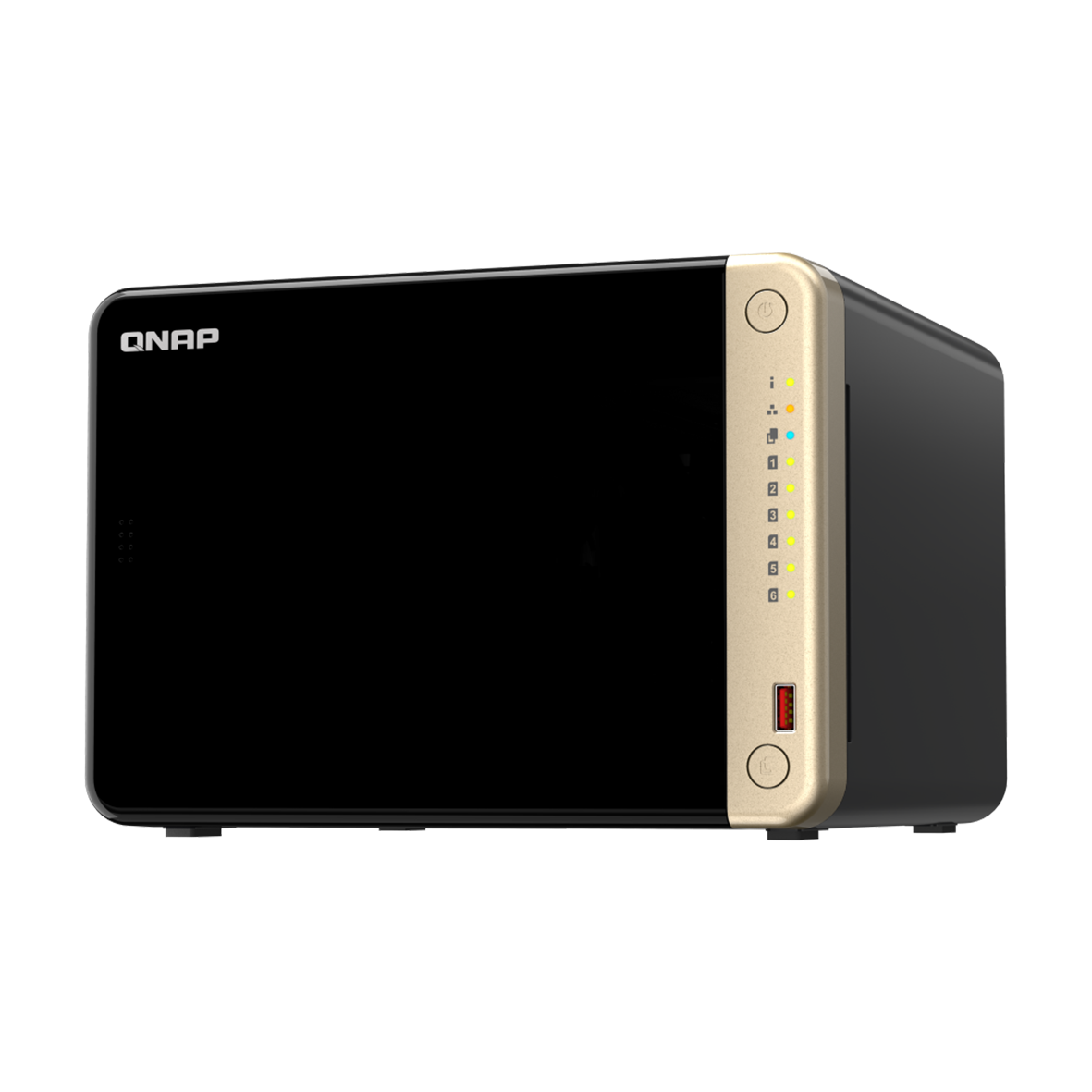

TS-664-4G
